Case report

A Case of Prosthetic Valve Endocarditis with Cerebral Hemorrhage Caused by Rothia mucilaginosa

1Department of Internal Medicine, 2Department of Laboratory Medicine, Hanyang University College of Medicine, Seoul, Korea

*These authors contributed equally to this work.

Corresponding to Hyunjoo Pai, E-mail: paihj@hanyang.ac.kr

Ann Clin Microbiol 2020;23(4):211-216. https://doi.org/10.5145/ACM.2020.23.4.6
Received on 19 February 2020, Revised on 10 April 2020, Accepted on 10 April 2020, Published on 20 December 2020.
Copyright © Korean Society of Clinical Microbiology.

Abstract

Rothia spp. are aerobic, gram-positive cocci belonging to the family Micrococcaceae, and are a part of the normal microbial flora of the human oropharynx and upper respiratory tract. We present the first case of the prosthetic valve endocarditis with cerebral hemorrhage caused by Rothia mucilaginosa in South Korea. A 65-year-old man with a prosthetic aortic valve visited the outpatient clinic with a complaint of fever. R. mucilaginosa was identified in one among four sets of blood culture bottles obtained on the on day 30 of fever onset. Brain magnetic resonance imaging (MRI) showed multiple micro-hemorrhages suggesting septic emboli in both the hemispheres, corticomedullary junctions, and cerebellum. Rothia spp. should be considered as a possible pathogen in the cases of infective endocarditis with intracranial hemorrhage.

Keywords

Cerebral hemorrhage, Infective endocarditis, Prosthetic valve, Rothia mucilaginosa

Introduction

Rothia spp. are aerobic, gram-positive cocci belonging to the family Micrococcaceae, which are part of normal flora of the human oropharynx and upper respiratory tract [1]. They are commonly associated with periodontal diseases and can cause invasive disease very rarely in healthy hosts [1]. However, Rothia spp. is increasingly recognized as an opportunistic pathogen mostly for immunocompromised patients [2]. To date, invasive infections caused by Rothia spp. have been reported for bacteremia, endocarditis, meningitis, pneumonia, skin and soft tissue infection, bone and joint infection, and endophthalmitis [13]. Among them, infective endocarditis was the most common infectious syndrome, and complications such as brain abscess, intracranial hemorrhage, and mycotic aneurysm could be accompanied by Rothia endocarditis [4]. Invasive infections by Rothia spp. have been rarely reported in South Korea [3,5].

Here, we report a case of prosthetic valve endocarditis with cerebral hemorrhage caused by Rothia mucilaginosa. To the best of our knowledge, this is the first case of endocarditis complicated with intracranial hemorrhage by Rothia spp. in South Korea.

Case report

A 65-year-old man presented to an outpatient clinic with persistent fever for a month and newly onset severe headache. The patient underwent aortic valvuloplasty owing to infective endocarditis with aortic stenosis 28 and 22 years ago, respectively. He had admitted to the hospital for three times with prosthetic valve endocarditis during the previous 11 years and the last episode was placed a year ago. The causative pathogens of each episode were Enterococcus avium, Enterococcus faecalis, and Streptococcus gallolyticus, respectively. Besides, he had diabetes mellitus, hypertension, dyslipidemia, and alcoholic liver cirrhosis as underlying diseases.

On admission, his vital signs were as follows: body temperature, 37.7 ºC; pulse rate, 72/min; respiration rate, 20/min; and blood pressure, 120/80 mmHg. Petechiae were observed on his trunk but no Janeway lesions or Osler’s nodes existed. There was no conjunctival hemorrhage and Roth spot was not detected on ophthalmic examination. Cardiac murmur was not heard on aortic, pulmonary, tricuspid, and mitral area. In addition, neurological deficit including localizing and lateralizing sign was not observed in both upper and lower extremities.

The initial laboratory examination revealed a white blood cell count of 6,600 cells/mm3, hemoglobin of 8.2 g/dL, platelet count of 105×103 cells/mm3 and C-reactive protein (CRP) level of 5.86 mg/dL. Electrocardiography showed atrial fibrillation with controlled ventricular response and some ventricular premature complexes. Chest and abdomen computed tomography (CT) scans were performed for differential diagnosis of fever, and there was no abnormal finding suggesting infectious syndrome.

On transesophageal echocardiography (TEE), a 1.2 cm sized linear hypermobile structure was found at left ventricular outflow tract. Taking together, these findings with the positive result of blood cultures obtained at the 30 day of fever indicated a diagnosis of prosthetic valve endocarditis; Rothia mucilaginosa was reported from one blood culture bottle among 4 sets of blood culture samples which were collected in BacT/ALERT Aerobic and Anaerobic standard bottles (bioMérieux, Durham, NC, USA) through an automated blood culture system (BacT/ALERT 3D; bioMérieux). Gram-stained smears of cultured media revealed gram-positive cocci in small irregular clusters. The colonies on chocolate agar were whitish to grey in color, non-hemolytic, smooth and mucoid (Fig. 1). The colonies did not grow on the blood agar plate. 16S rRNA sequencing confirmed the species as R. mucilaginosa with 99% of identity. Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS; Bruker Daltonics, Billerica, MA, USA) identified the strain as R. mucilaginosa (highest score = 2.092).

At the day of admission, brain magnetic resonance imaging (MRI) was taken for evaluation of headache, which showed multiple microhemorrhages suggesting septic emboli on both hemisphere, corticomedullary junction area and cerebellum.

We started vancomycin, rifampin, and ceftriaxone as an empirical therapy accordingly and the clinical response to the antibiotic therapy was good; his body temperature became normalized and CRP level decreased.

Since no Clinical and Laboratory Standards Institute (CLSI) protocols exist for R. mucilaginosa, we performed antimicrobial susceptibility test using CLSI criteria for staphylococci (M100-S21), as described previously [6]. The result of antimicrobial susceptibility test was reported on hospital day 7 (Table 1), and we changed antibiotic regimen to ampicillin and rifampin.

On hospital day 11, the patient presented gait disturbance with aggravation of headache. Follow-up brain CT and magnetic resonance angiography were performed: newly developed intracranial hemorrhage at left temporal lobe and head of caudate nucleus was observed without vascular malformation such as mycotic aneurysm. Dysphagia and proximal muscle weakness on upper extremities were aggravated gradually and increased size of intracranial hemorrhage was found at follow up brain CT on hospital day 24. After changing antibiotics from ampicillin to vancomycin again, his symptoms were stabilized and there was no progression in neurologic sign.

However, on hospital day 56, the patient’s mental status became stuporous and he was transferred to intensive care unit. Follow-up brain CT showed newly developed intracranial hemorrhage at left parietal region, and intraventricular hemorrhage in both lateral ventricles. The antibiotic regimen was maintained with vancomycin and rifampin and his neurologic symptoms and signs showed waxing and waning. On hospital day 67, he was transferred to general ward and finally was transferred to another hospital for his family’s request on hospital day 75. Right side motor weakness remained as a sequela to the patient.

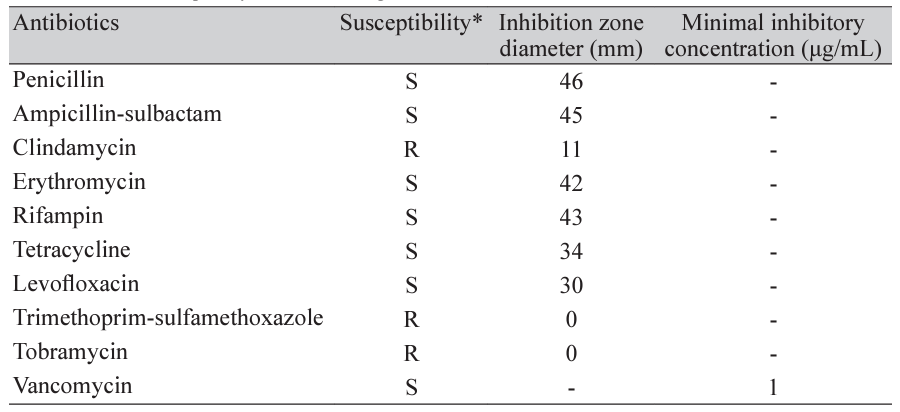

Table 1. Antibiotic susceptibility of Rothia mucilaginosa

AntibioticsSusceptibility*Inhibition zone diameter (mm)Minimal inhibitory concentration (μg/mL)
PenicillinS46
Ampicillin-sulbactamS45
ClindamycinR11
ErythromycinS42
RifampinS43
TetracyclineS34
LevofloxacinS30
Trimethoprim-sulfamethoxazoleR0
TobramycinR0
VancomycinS1

*The drug susceptibility of Rothia mucilaginosain the present case was determined by using disk diffusion test according to the 2011 Clinical and Laboratory Standards Institute (M100-S21) criteria for staphylococci. The vancomycin susceptibility was determined by E-test because the disk test is not available for differentiating among vancomycin-susceptible, -intermediate, and -resistant isolates of Staphylococcus spp.
Abbreviations: S,susceptible; R,resistant.

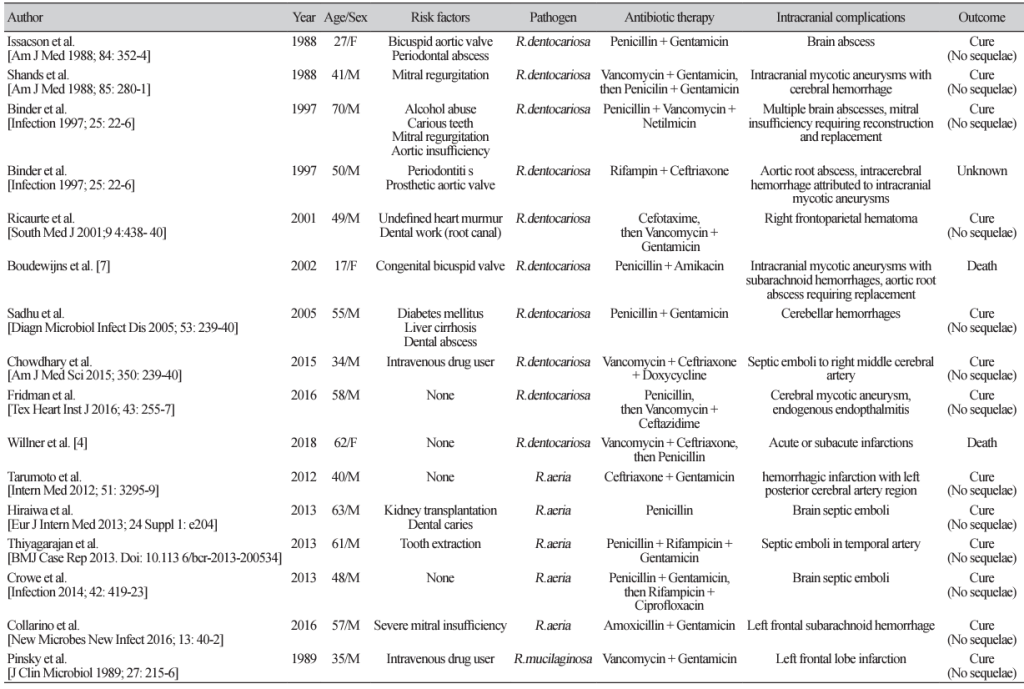

Table 2. Reported cases of infective endocarditis with intracranial complications

AuthorYearAge/SexRisk factorsPathogenAntibiotic therapyIntracranial complicationsOutcome
Issacson et al.
[Am J Med 1988; 84: 352-4]
198827/FBicuspid aortic valve
Periodontal abscess
R.dentocariosaPenicillin + GentamicinBrain abscessCure
(No sequelae)
Shands et al.
[Am J Med 1988; 85: 280-1]
198841/MMitral regurgitationR.dentocariosaVancomycin + Gentamicin,
then Penicilin + Gentamicin
Intracranial mycotic aneurysms with cerebral hemorrhageCure
(No sequelae)
Binder et al.
[Infection 1997; 25: 22-6]
199770/MAlcohol abuse
Carious teeth
Mitral regurgitation
Aortic insufficiency
R.dentocariosaPenicillin + Vancomycin + NetilmicinMultiple brain abscesses, mitral insufficiency requiring reconstruction and replacementCure
(No sequelae)
Binder et al.
[Infection 1997; 25: 22-6]
199750/MPeriodontiti s
Prosthetic aortic valve
R.dentocariosaRifampin + CeftriaxoneAortic root abscess, intracerebral hemorrhage attributed to intracranial mycotic aneurysmsUnknown
Ricaurte et al.
[South Med J 2001;9 4:438- 40]
200149/MUndefined heart murmur
Dental work (root canal)
R.dentocariosaCefotaxime,
then Vancomycin + Gentamicin
Right frontoparietal hematomaCure
(No sequelae)
Boudewijns et al. [7]200217/FCongenital bicuspid valveR.dentocariosaPenicillin + AmikacinIntracranial mycotic aneurysms with subarachnoid hemorrhages, aortic root abscess requiring replacementDeath
Sadhu et al.
[Diagn Microbiol Infect Dis 2005; 53: 239-40]
200555/MDiabetes mellitus
Liver cirrhosis
Dental abscess
R.dentocariosaPenicillin + GentamicinCerebellar hemorrhagesCure
(No sequelae)
Chowdhary et al.
[Am J Med Sci 2015; 350: 239-40]
201534/MIntravenous drug userR.dentocariosaVancomycin + Ceftriaxone + DoxycyclineSeptic emboli to right middle cerebral arteryCure
(No sequelae)
Fridman et al.
[Tex Heart Inst J 2016; 43: 255-7]
201658/MNoneR.dentocariosaPenicillin,
then Vancomycin + Ceftazidime
Cerebral mycotic aneurysm, endogenous endopthalmitisCure
(No sequelae)
Willner et al. [4]201862/FNoneR.dentocariosaVancomycin + Ceftriaxone,
then Penicillin
Acute or subacute infarctionsDeath
Tarumoto et al.
[Intern Med 2012; 51: 3295-9]
201240/MNoneR.aeriaCeftriaxone + Gentamicinhemorrhagic infarction with left posterior cerebral artery regionCure
(No sequelae)
Hiraiwa et al.
[Eur J Intern Med 2013; 24 Suppl 1: e204]
201363/MKidney transplantation
Dental caries
R.aeriaPenicillinBrain septic emboliCure
(No sequelae)
Thiyagarajan et al.
[BMJ Case Rep 2013. Doi: 10.113 6/bcr-2013-200534]
201361/MTooth extractionR.aeriaPenicillin + Rifampicin + GentamicinSeptic emboli in temporal arteryCure
(No sequelae)
Crowe et al.
[Infection 2014; 42: 419-23]
201348/MNoneR.aeriaPenicillin + Gentamicin,
then Rifampicin + Ciprofloxacin
Brain septic emboliCure
(No sequelae)
Collarino et al.
[New Microbes New Infect 2016; 13: 40-2]
201657/MSevere mitral insufficiencyR.aeriaAmoxicillin + GentamicinLeft frontal subarachnoid hemorrhageCure
(No sequelae)
Pinsky et al.
[J Clin Microbiol 1989; 27: 215-6]
198935/MIntravenous drug userR.mucilaginosaVancomycin + GentamicinLeft frontal lobe infarctionCure
(No sequelae)

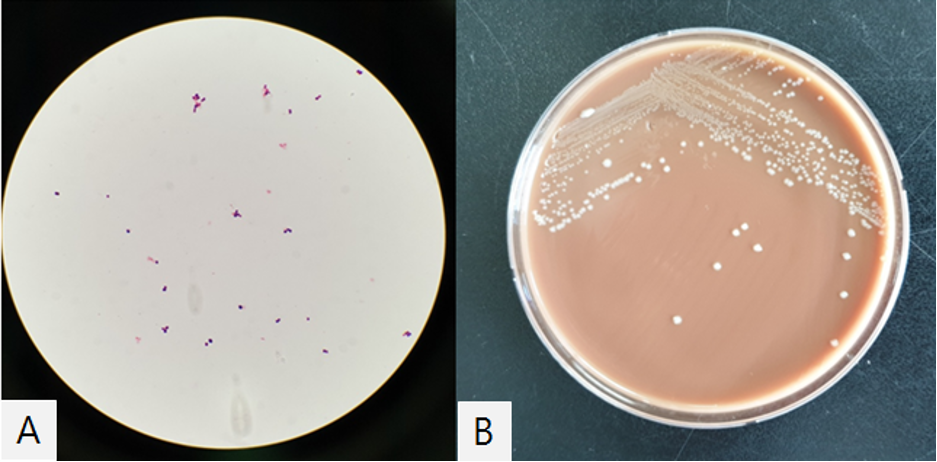

Fig. 1. Microbiological examinations. A. Rothia mucilaginosa Gram staining (×1,000) B. Whitish to grey Rothia mucilaginosa colonies grown on chocolate agar plate at 35℃ and 5% CO2.

Discussion

Since the first case report of infective endocarditis caused by Rothia spp., a total of 39 cases of Rothia spp. associated infective endocarditis have been reported. The majority of identified pathogens were Rothia dentocariosa (66.7%, 26/39), followed by Rothia aeria (17.9%, 7/39) and R. mucilaginosa (15.4%, 6/39). One of the most important underlying conditions for acquisition of Rothia spp. associated invasive diseases is dental or periodontal diseases [1]. Immunocompromised conditions such as hematological malignancy, severe neutropenia, diabetes mellitus, alcoholism, chronic liver disease and HIV infection are known to be another important risk factor [1].

Among the reported infective endocarditis cases due to Rothia spp., 41% (16/39) had intracranial complications, which was higher proportion compared with general infective endocarditis patients; symptomatic neurological complications occur in 15%–30% of patients with infective endocarditis and are mainly the consequence of embolism from vegetations [7]. The exact reason for the higher rate of intracranial complication in Rothia spp. associated infective endocarditis is yet to be identified.

The reported cases of infective endocarditis with intracranial complications are summarized in Table 2. The most common presentation was intracranial hemorrhage (37.5%, 6/16), followed by septic emboli (25.0%, 4/16), mycotic aneurysm (25.0%, 4/16), cerebral infarction (18.7%, 3/16), and brain abscess (12.5%, 2/16). Among them, 75% (12/16) of patients had risk factors for Rothia spp. associated invasive diseases: 7 with dental or periodontal diseases, 3 with immunocompromised condition, and 8 with cardiac valve diseases.

The optimal antimicrobial treatment of R. mucilaginosa infection has not been determined. According to the previous case reports, the organism seems to be susceptible to a variety of antibiotics targeting gram-positive pathogens such as ampicillin, rifampin, and vancomycin [3]. However, the pathogen was frequently resistant to penicillin, clindamycin and aminoglycosides as well as to trimethoprim-sulfamethoxazole and ciprofloxacin [1]. Although the antimicrobial susceptibility test showed the organism is susceptible to ampicillin, vancomycin and rifampin, rapid progression of neurologic symptoms and signs with aggravation of cerebral hemorrhage were observed in the present case after changing antibiotic regimen from vancomycin to ampicillin. Interestingly, his neurologic symptoms started to improve after changing antibiotic regimen from ampicillin to vancomycin again. Further studies are necessary to clarify this issue.

In South Korea, one case of infective endocarditis caused by R. aeria was reported in the patient taking immunosuppressive medication and the patient was successfully treated without intracranial complications [5]. To the best of our knowledge, this is the first case of infective endocarditis with cerebral hemorrhage caused by R. mucilaginosa in South Korea. Clinicians should consider Rothia spp. as a possible pathogen in the cases of infective endocarditis with intracranial complications.

요약

Rothia 종은 호기성 그람양성구균으로 Micrococcaceae 과에 속하며, 사람의 구인두 및 상부 호흡기의 정상 세균총이다. Rothia mucilaginosa에 의한 뇌출혈을 동반한 인공판막 심내막염 국내 첫 증례가 확인되었기에 보고한다. 인공 대동맥판막 수술력이 있는 65세 남자 환자가 발열을 주소로 본원 감염내과 외래에 내원하였다. 발열 후 30일째 시행된 혈액배양검사 중 한쌍에서 R. mucilaginosa가 동정되었다. 뇌 자기공명영상검사에서 양쪽 대뇌반구, 피질과 수질의 접합부, 소뇌에서 패혈성 색전증을 시사하는 미세출혈 소견이 확인되었다. 뇌출혈을 동반한 감염성 심내막염에서 Rothia 종은 원인균으로 고려되어야 한다.

Conflicts of interest

No potential conflicts of interest relevant to this article were reported.

Acknowledgements

The authors thank Mi-Ran Seo and Sujeong Kim for their cooperation in antimicrobial susceptibility test.

References

1. Ramanan P, Barreto JN, Osmon DR, Tosh PK. Rothia bacteremia: a 10-year experience at mayo clinic, rochester, minnesota. J Clin Microbiol 2014;52:3184-9.

2. Maraki S and Papadakis IS. Rothia mucilaginosa pneumonia: a literature review. Infect Dis 2015;47:125-9.

3. Cho EJ, Sung H, Park SJ, Kim MN, Lee SO. Rothia mucilaginosa pneu­monia diagnosed by quantitative cultures and intracellular organisms of bronchoalveolar lavage in a lymphoma patient. Ann Lab Med 2013;33:145-9.

4. Willner S, Imam Z, Hader I. Rothia dentocariosa endocarditis in an unsuspecting host: a case report and literature review. Case Rep Cardiol 2019:7464251.

5. Kim UJ, Won EJ, Kim JE, Jang MO, Kang SJ, Jang HC, et al. Rothia aeria infective endocarditis: a first case in Korea and literature review. Ann Lab Med 2014;34:317-20.

6. Clinical and Laboratory Standards Institute (CLSI). Performance standards for antimicrobial susceptibility testing; 21st ed. CLSI supplement M100. Wayne; PA: 2011.

7. Boudewijns M, Magerman K, Verhaehen J, Debrock G, Peetermans WE, Donkersloot P, et al. Rothia dentocariosa, endocarditis and mycotic aneurysms: case report and review of the literature. Clin Microbiol Infect 2003;9:222-9.
