Annals of Clinical Microbiology, The official Journal of the Korean Society of Clinical Microbiology
6
Weeks in Review
4
Weeks to Publication
Menu
Department of Laboratory Medicine, 1Gangneung Asan Hospital, University of Ulsan College of Medicine, Gangneung, 2Green Cross Laboratories (GC Labs), Yongin, 3Chosun University Hospital, Chosun University College of Medicine, Gwangju, 4Hanyang University Guri Hospital, Hanyang University College of Medicine, Guri, 5Gyeongsang National University Hospital, Gyeongsang National University College of Medicine, Jinju, 6Asan Medical Center, University of Ulsan College of Medicine, Seoul, Korea
Corresponding to Eun Jeong Won, E-mail: ejwon@amc.seoul.kr; Jung-Hyun Byun, E-mail: microbyun@gmail.com
Ann Clin Microbiol 2023;26(3):67-73. https://doi.org/10.5145/ACM.2023.26.3.4
Received on 7 July 2023, Revised on 8 September 2023, Accepted on 8 September 2023, Published on 20 September 2023.
Copyright © Korean Society of Clinical Microbiology.
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (https://creativecommons.org/licenses/by-nc/4.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
Background: Intestinal protozoa are potential diarrhea-causing pathogens and monitored worldwide. The Korea Centers for Disease Control and Prevention has also been monitoring intestinal protozoa causing diarrhea for many years. Recently, the overall protozoa detection rate has decreased to less than 1%, but whether protozoa infection causing diarrhea has declined or is being underestimated has not been studied. This study aimed to investigate the molecular epidemiology of intestinal protozoan pathogens in stool samples collected from multiple Korean centers.
Methods: Stool samples were collected from five university hospitals and a commercial laboratory. Direct smear and trichrome staining were performed on all samples. The presence of Cryptosporidium parvum, Giardia lamblia, Entamoeba histolytica, Cyclospora cayetanensis, Dientamoeba fragilis, and Blastocystis hominis were detected using Allplex™ Gastrointestinal Parasite Assays (Seegene Inc., Korea). Microsporidia species and Kudoa septempunctata were detected using PowerChek™ Microsporidia Multiplex and Kudoa Real-time PCR kits (Kogene Biotech, Korea), respectively.
Results: The collected samples included 279 diarrheal and 51 non-diarrheal samples. Among the 279 diarrheal samples, nine samples [B. hominis (n=7), C. parvum (n=1), and Microporidia species (n=1)] were positive, but there were no positive samples for K. septempunctata. We could not detect any protozoa by direct smear and trichrome staining. Among the 51 nondiarrheal samples, 10 (19.6%) samples were positive for B. hominis, but no other protozoa were observed.
Conclusion: This multicenter study showed that the detection rate of intestinal protozoa is currently low in diarrheal samples from Korea. However, B. hominis was frequently detected in non-diarrheal samples, indicating their low pathogenicity.
Molecular epidemiology, Protozoa, Multicenter, Korea
Diarrheal diseases are the second leading cause of death in children younger than five years of age worldwide, accounting for approximately 1.7 billion cases yearly [1]. Diarrheal diseases are caused by numerous bacteria, viruses, and parasites spread primarily through feces-contaminated water. The four types of protozoa, which cause nationally notifiable infectious diseases, Cryptosporidium parvum, Giardia lamblia, Entamoeba histolytica, and Cyclospora cayetanensis, act as causative pathogens for acute diarrheal illness, especially a waterborne infection, which can be life-threatening in cases of infection in immunodeficient patients or young infants [2–4].
In Korea, examination of these protozoan pathogens began in 1972, linking the Korea Centers for Disease Control and Prevention (KCDC), which was reorganized into the Korea Disease Control and Prevention Agency, Public Health Center, and Institute of Health and Environment. The monitoring laboratory for acute diarrheal disease (EnterNet-Korea) started operations in 2003. Since 2005, the KCDC has been monitoring pathogens that cause acute gastroenteritis in patients who visit hospitals with the primary symptoms of diarrhea and abdominal pain through a waterborne food disease monitoring network operation project involving 70-192 medical institutions. A recent survey data (2015-2018) noticed that the overall detection rate of protozoa decreased to less than 1% [3]. It took much work to find national statistics on intestinal protozoan infections or any statistical data that could represent the national prevalence [5].
The status could only be estimated based on the results of fragmented papers published by researchers interested in parasitic protozoan infections [5]. Thus, it is curious whether protozoa infection causing diarrhea has declined or is underestimated. This study aimed to investigate the molecular epidemiology of these intestinal protozoan pathogens among stool samples collected from the Korean multicenter.
A total of 279 diarrheal fecal samples submitted for stool culture or testing of diarrheal pathogens to clinical laboratories at five university hospitals throughout Korea (Chonnam National University Hwasun Hospital, Gyeongsang National University Hospital, Chosun University Hospital, Hanyang University Guri Hospital, and Gangneung Asan Medical Center) and a reference laboratory harboring branch offices nationwide (Green Cross Laboratories) were collected. In addition, 51 non-diarrheal fecal samples were collected from subjects who underwent general checkups without any gastrointestinal symptoms to use as control samples.
The collected fecal samples were stored at 4℃ until transport. They were transferred to the analysis center (Chonnam National University Hwasun Hospital) twice a week through a cold chain delivery system. Direct smear and trichrome staining were performed on all samples.
The presence of Cryptosporidium parvum, Giardia lamblia, Entamoeba histolytica, Cyclospora cayetanensis, Dientamoeba fragilis, and Blastocystis hominis were determined by Allplex™ Gastrointestinal Parasite Assays (Seegene Inc., Seoul, Korea) [6]. The presence of Microsporidia species or Kudoa septempunctata was determined by PowerChek™ Microsporidia Multiplex Real-time PCR kit (Kogene Biotech, Seoul, Korea) and PowerChek™ Kudoa Real-time PCR kit (Kogene Biotech), respectively. PCR amplification and detection were performed using the CFX-96 Real-Time PCR Detection System (Bio-Rad Laboratories Inc., Hercules, CA, USA). Any positive results obtained by Real-time PCR kit were confirmed by additional sequencing.
Two hundred seventy-nine diarrheal samples were collected, including 151 samples from five university hospitals and 128 from a commercial laboratory (Table 1). There were no significant differences in gender distributions or mean age according to the collection centers. Overall, 12.6% of patients received immunosuppressive therapy, 7.3% could recall a suspicious food history, and only one patient had a suspicious travel history. We could not detect protozoa by direct smear and trichrome staining to the 279 diarrheal samples. However, nine samples were molecularly positive to any protozoa, including C. parvum (n=1, 0.4%), Microsporidia species (n=1, 0.4%), and B. hominis (n=7, 2.5%), respectively (Table 2).
The overall prevalence of any protozoa was 3.2% in diarrheal samples, but only 0.8% was noticed, except for B. hominis. Of the 51 non-diarrheal samples, 10 (19.6%) were positive to B. hominis, but other protozoa were not observed (Table 3).

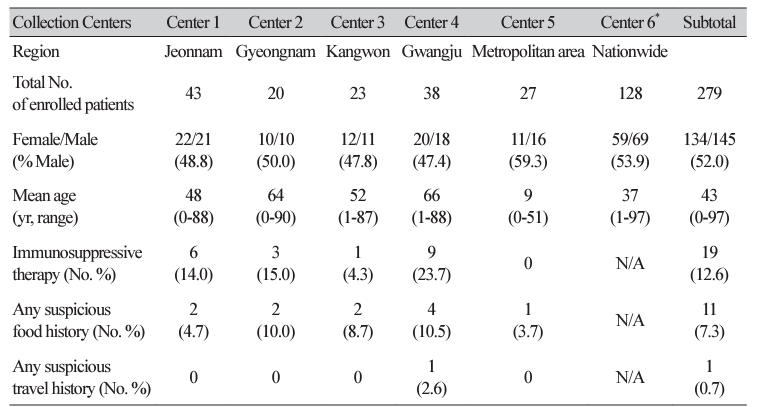

Table 1. Clinical characteristics of the diarrheal patients enrolled in this study
| Collection Centers | Center 1 | Center 2 | Center 3 | Center 4 | Center 5 | Center 6* | Subtotal |
|---|---|---|---|---|---|---|---|
| Region | Jeonnam | Gyeongnam | Kangwon | Gwangju | Metropolitan area | Nationwide | |
| Total No. of enrolled patients | 43 | 20 | 23 | 38 | 27 | 128 | 279 |
| Female/Male (% Male) | 22/21 (48.8) | 10/10 (50.0) | 12/11 (47.8) | 20/18 (47.4) | 11/16 (59.3) | 59/69 (53.9) | 134/145 (52.0) |
| Mean age (yr, range) | 48 (0-88) | 64 (0-90) | 52 (1-87) | 66 (1-88) | 9 (0-51) | 37 (1-97) | 43 (0-97) |
| Immunosuppressive therapy (No. %) | 6 (14.0) | 3 (15.0) | 1 (4.3) | 9 (23.7) | 0 | N/A | 19 (12.6) |
| Any suspicious food history (No. %) | 2 (4.7) | 2 (10.0) | 2 (8.7) | 4 (10.5) | 1 (3.7) | N/A | 11 (7.3) |
| Any suspicious travel history (No. %) | 0 | 0 | 0 | 1 (2.6) | 0 | N/A | 1 (0.7) |
*Center 6 was a reference laboratory harboring branch offices nationwide. Abbreviation: N/A, not available.

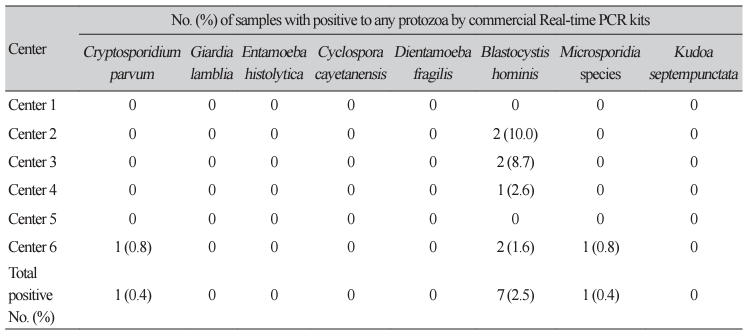

Table 2. Detection of several protozoa among 279 diarrheal fecal samples obtained from six collection centers
| Center | No. (%) of samples with positive to any protozoa by commercial Real-time PCR kits | |||||||
|---|---|---|---|---|---|---|---|---|
| Cryptosporidium parvum | Giardia lamblia | Entamoeba histolytica | Cyclospora cayetanensis | Dientamoeba fragilis | Blastocystis hominis | Microsporidia species | Kudoa septempunctata | |
| Center 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Center 2 | 0 | 0 | 0 | 0 | 0 | 2 (10.0) | 0 | 0 |
| Center 3 | 0 | 0 | 0 | 0 | 0 | 2 (8.7) | 0 | 0 |
| Center 4 | 0 | 0 | 0 | 0 | 0 | 1 (2.6) | 0 | 0 |
| Center 5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Center 6 | 1 (0.8) | 0 | 0 | 0 | 0 | 2 (1.6) | 1 (0.8) | 0 |
| Total positive No. (%) | 1 (0.4) | 0 | 0 | 0 | 0 | 7 (2.5) | 1 (0.4) | 0 |
Abbreviation: PCR, polymerase chain reaction.

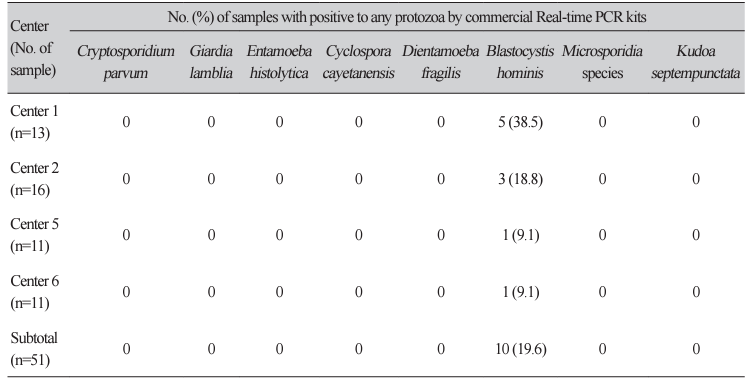

Table 3. Detection of the targeted protozoa among 51 non-diarrheal fecal samples obtained from nondiarrheal healthy controls using molecular diagnostics
| Center (No. of sample) | No. (%) of samples with positive to any protozoa by commercial Real-time PCR kits | |||||||
|---|---|---|---|---|---|---|---|---|
| Cryptosporidium parvum | Giardia lamblia | Entamoeba histolytica | Cyclospora cayetanensis | Dientamoeba fragilis | Blastocystis hominis | Microsporidia species | Kudoa septempunctata | |
| Center 1 (n=13) | 0 | 0 | 0 | 0 | 0 | 5 (38.5) | 0 | 0 |
| Center 2 (n=16) | 0 | 0 | 0 | 0 | 0 | 3 (18.8) | 0 | 0 |
| Center 5 (n=11) | 0 | 0 | 0 | 0 | 0 | 1 (9.1) | 0 | 0 |
| Center 6 (n=11) | 0 | 0 | 0 | 0 | 0 | 1 (9.1) | 0 | 0 |
| Subtotal (n=51) | 0 | 0 | 0 | 0 | 0 | 10 (19.6) | 0 | 0 |
Abbreviation: PCR, polymerase chain reaction.
Most laboratories use the microscopic examination for enteric protozoa, usually direct smear microscopy, concentration techniques, or special stains; however, these techniques are labor-intensive and require welltrained and highly skilled technicians for optimal interpretation [7]. In this study, we were also hard to find any evidence of protozoa using direct smear slides. First, this might be due to the tiny amount of protozoa on direct smears. Especially for the low burden of protozoa, microscopic examination is ineffective for accurately detecting the parasites due to low diagnostic sensitivity and specificity [8–10]. Even more, it was also challenging to detect Blastocystis on direct smear. Stensvold et al. [10] previously reported that false-negative results were more frequently found with Blastocystis subtype 3 due to their presentation as inconspicuous cysts. This notion might partly explain our results, considering that Blastocystis subtype 3 was the primary subtype observed in Korea [11,12].
Several molecular techniques involving polymerase chain reaction have been developed for detecting protozoa to satisfy the need for unbiased and rapid analytical methods with high sensitivity and specificity [6–15]. However, in Korea, several molecular diagnostic kits for enteric protozoa could not apply to patient diagnosis in the real world due to lack of approval. Moreover, 74.4% of respondents diagnosed protozoan infections without a special stain in a survey performed at clinical microbiology laboratories in Korea. However, they thought special stains were necessary to diagnose a protozoan infection [16]. Thus, we speculated that the prevalence of enteric protozoa might be underestimated.
The current multicenter study, however, suggested that enteric protozoa causing diarrhea declined recently, supporting recent survey data from 2015 to 2018 with less than a 1% positive rate [3]. When we focused on enteric protozoa recognized as definitive pathogens, the only two cases with positive to C. parvum and Microsporidia species were significant. Microsporidia have been identified as a cause of opportunistic infections associated with persistent diarrhea and weight loss in people with AIDS [17]. In a recent Korean report, 5% of diarrheal stools were positive for E. intestinalis [18]. In this study, the positive rate of Blastocystis was significantly lower in the diarrheal samples (2.5%) than in the non-diarrheal samples (19.8%), similar to previous data [19]. Our data also supported the notion that Blastocystis is frequently colonized among non-symptomatic populations in Korea, and they might be less pathogenic [11,12]. A recent Korean gut microbiome profiling has strengthened the notion that Blastocystis is associated with healthy gut microbiota due to its grazing activity on the bacterial substrate [19,20]. Especially, Blastocystis subtype 3 was more frequently found in the healthy group [11,12], and this type was known to have little effect on gastrointestinal transit [10].
Considering this high prevalence of Blastocystis in non-diarrheal situations, it is cautious about their interpretation regarding their clinical significance. Kim et al. previously compared the performance of the two commercial kits, BD MAX™ Enteric Parasite Panel (Becton, Dickinson and Company, Sparks, MD, USA) and Allplex™ Gastrointestinal Parasite Assays (Seegene Inc.,). They suggested the BD MAX™ Enteric Parasite Panel as a choice for detecting intestinal parasites in Korean clinical settings [21]. Further evaluation for these assays may require a large number of cohorts, especially in low-endemic areas such as Korea.
The current multicenter study shows that the prevalence of enteric protozoa causing diarrhea is quite low throughout Korea, with less than a 1% positive rate. Direct smear is unsuitable for this low prevalence setting, even with trichrome staining. Furthermore, the presence of Blastocystis should be cautiously interpreted, considering their low pathogenicity.
This study was approved by the Institutional Review Board of Chonnam National University Hwasun Hospital (IRB No. CNUHH-2022-112) and all participant centers. The IRBs of each center waived the requirement for informed consent because of the shallow risk of breaches of participant privacy.
Jung-Hyun Byun is currently an Assistant Editor of the Annals of Clinical Microbiology. However, she was not involved in the review process of this article.
We thank all Tropical Medicine Research Group members of the Korean Society of Clinical Microbiology.
This work was partially supported by the Research Fund (2022) of the Korean Society of Clinical Microbiology, and the Research Program funded by the Korea Centers for Disease Control and Prevention (2022).
1. WHO. Diarrhoeal disease. https://www.who.int/news-room/fact-sheets/detail/diarrhoealdisease [Online] (last visited on 7 June 2023).
2. Jeon HI. Prevalence and mixed infection of diarrheal outpatients with gastrointestinal protozoa, bacteria and viruses. Public Health Wkly Rep, KCDC 2011;4:37–43.
3. Ma DW, Ju JW, Cho SH. Current status of surveillance of protozoa infection, 2015-2018. Public Health Wkly Rep, PHWR 2019;12:1202–11.
4. Lee SE, Park MY. Prevalence of enteric protozoan infection among diarrheal patients in Korea, 2013. Public Health Wkly Rep, PHWR 2015;8:145–9.
5. Hong ST, Yong TS. Review of successful control of parasitic infections in Korea. Infect Chemother 2020;52:427–40.
6. Autier B, Gangneux JP, Robert-Gangneux F. Evaluation of the Allplex™ Gastrointestinal Panel-Parasite Assay for protozoa detection in stool samples: a retrospective and prospective study. Microorganisms 2020;8:569.
7. Mergani MH, Mohammed MA, Khan N, Bano M, Khan AH. Detection of intestinal protozoa by using different methods. Dent Med Res 2014;2:28–32.
8. McHardy IH, Wu M, Shimizu-Cohen R, Couturier MR, Humphries RM. Detection of intestinal protozoa in the clinical laboratory. J Clin Microbiol 2014;52:712–20.
9. Gardner BB, Del Junco DJ, Fenn J, Hengesbaugh JH. Comparision of direct wet mount and trichrome staining techniques for detecting Entamoeba species trophozoites in stools. J Clin Microbiol 1980;12:656–8.
10. Stensvold CR, Arendrup MC, Jespersgaard C, Mølbak K, Nielsen HV. Detecting Blastocystis using parasitologic and DNA-based methods: a comparative study. Diagn Microbiol Infect Dis 2007;59:303-7.
11. Kim MJ, Won EJ, Kim SH, Shin JH, Chai JY. Molecular detection and subtyping of human Blastocystis and the clinical implications: comparisons between diarrheal and non-diarrheal groups in Korean populations. Korean J Parasitol 2020;58:321–6.
12. Kim SH, Byun JH, Oh Y, Liu C, Bae MH, Won EJ. Epidemiology and subtype distribution of Blastocystis among asymptomatic volunteers in South Korea: a multicenter study. Ann Clin Microbiol 2023;26:11–7.
13. Verweij JJ. Application of PCR-based methods for diagnosis of intestinal parasitic infections in the clinical laboratory. Parasitology 2014;141:1863–72.
14. Won EJ, Kim SH, Kee SJ, Shin JH, Suh SP, Chai JY, et al. Multiplex real-time PCR assay targeting eight parasites customized to the Korean population: potential use for detection in diarrheal stool samples from gastroenteritis patients. PLoS One 2016;11:e0166957.
15. Parčina M, Reiter-Owona I, Mockenhaupt FP, Vojvoda V, Gahutu JB, Hoerauf A, et al. Highly sensitive and specific detection of Giardia duodenalis, Entamoeba histolytica, and Cryptosporidium spp. in human stool samples by the BD MAX™ Enteric Parasite Panel. Parasitol Res 2018;117:447–51.
16. Kwon YJ, Won EJ, Kee SJ, Kim SH, Shin MG, Shin JH, et al. Internal quality assurance status of stool examination as assessed by a questionnaire in Korean clinical laboratories. Lab Med Online 2018;8:19–23.
17. Weber R, Deplazes P, et al. Diagnosis and clinical aspects of human microsporidiosis. In: Petry F, eds. Cryptosporidiosis and microsporidiosis. Basel; S Karger AG, 2000:166–92.
18. Kim K, Yoon S, Cheun HI, Kim JH, Sim S, Yu JR. Detection of Encephalitozoon spp. from human diarrheal stool and farm soil samples in Korea. J Korean Med Sci 2015;30:227–32.
19. Kim MJ, Lee YJ, Kim TJ, Won EJ. Gut microbiome profiles in colonizations with the enteric protozoa Blastocystis in Korean populations. Microorganisms 2021;10:34.
20. Betts EL, Newton JM, Thompson GS, Sarzhanov F, Jinatham V, Kim MJ, et al. Metabolic fluctuations in the human stool obtained from Blastocystis carriers and non-carriers. Metabolites 2021;11:883.
21. Kim B, Kim HS, Kim JJ, Park YJ, Kim D, Yong D. Detection of intestinal protozoa in Korean patients using BD MAX Enteric Parasite Panel and Seegene Allplex Gastrointestinal Parasite Assay. Lab Med Online 2020;10:221–6.
